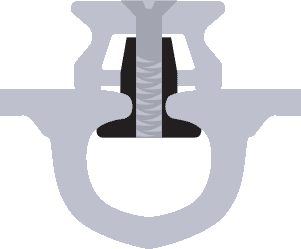

BATTEN SYSTEM - Slugs
Regreso a los esquemas de montaje de sistemas de sables forzados
| Track Series 19 | ||||||
| Referencia | Diagrama | A
(mm) |
B
(mm) |
C
(mm) |
Peso
(g) |
Imagen |
RC00310 |
|
3.7 |
9.4 |
13.5 |
4 |
|
RC00312 |
|
2.8 |
7.6 |
12.6 |
3 |
|
RC00314 |
|
4.0 |
12.0 |
16.1 |
5 |
|
RC00315 |
|
4.6 |
12.8 |
16.0 |
5 |
|
RC00316 |
|
3.6 |
11.5 |
15.0 |
5 |
|
RC00320 |
|
10.0 |
18.0 |
12.6 |
7 |
|
RC00321 |
|
11.8 |
19.9 |
13.0 |
8 |
|
RC00322 |
|
13.5 |
21.5 |
13.0 |
9 |
|
RC00323 |
|
8.1 |
15.0 |
13.5 |
6 |
|
RC00328 |
|
8.0 |
15.0 |
12.0 |
5 |
|
| Track Series 22 y 26 | ||||||
| Referencia | Diagrama | A
(mm) |
B
(mm) |
C
(mm) |
Peso
(g) |
Imagen |
RC00332 |
|
3.5 |
8.3 |
16.1 |
5 |
|
RC00333 |
|
4.6 |
13.0 |
18.0 |
6 |
|
RC00334 |
|
4.5 |
11.9 |
16.6 |
6 |
|
RC00335 |
|
4.5 |
11.9 |
16.6 |
6 |
|
RC00340 |
|
10.0 |
18.0 |
15.0 |
8 |
|
RC00341 |
|
13.6 |
21.5 |
15.5 |
11 |
|
RC00343 |
|
11.8 |
19.8 |
15.5 |
10 |
|
| Track Series 30 | ||||||
| Referencia | Diagrama | A
(mm) |
B
(mm) |
C
(mm) |
Peso
(g) |
Imagen |
RC00354 |
|
4.4 |
12.0 |
20.0 |
10 |
|
RC00360 |
|
12.6 |
22.9 |
18.0 |
17 |
|
RC00361 |
|
18.5 |
29.7 |
20.0 |
26 |
|
